PUR hot melt machine 5/55 gallon

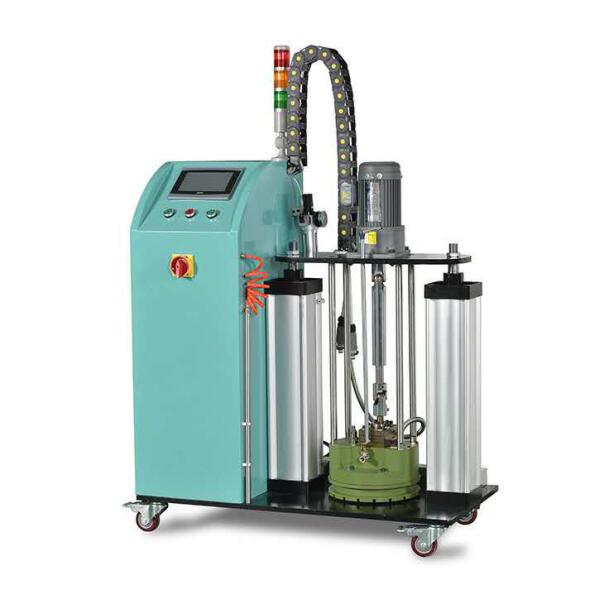

5 GallonsPURHot Melt Glue Machine
model ：5 Gallons
PUR hot-melt adhesives are widely used in woodworking, automotive, electronics, packaging, sanitary products, furniture, construction, mattresses and other industries
features：
PUR hot melt machine features:1. Floor-standing design, dual-motor dual-pump dual-disconnectable seats can be equipped independently;
2. The horizontal pump body adopts buffer connector to better calibrate the connection level;
3. New guided return valve, adjust the setting more accurate and stable.
4. Frame-type fuselage structure, easy installation and maintenance
5. Two-layer infiltrated Teflon coating inside the melting tank, progressive fin-shaped heating part, improving the efficiency of the melted glue to save energy, effectively reducing the carbonization phenomenon.
- details
- parameters
Technical characteristics:
WA series PUR hot melt adhesive machine adopts touch screen-human interface full operation, suitable for application of high-precision hot melt adhesive coating, motor-driven precision gear pump and automatic glue tracking system, and supporting precision gear pump to meet users Different production needs.
* The fuselage adopts the frame structure design, the hoarding board combination, makes its overall coordination beautiful, the daily maintenance is quick and convenient;
* Double osmosis Teflon coating inside the melting tank, large fin-like heating part of the immersed fin, improving the efficiency of the melted glue to save energy consumption, the inner wall "Teflon" coated
Layer, effectively reduce the carbonation phenomenon, to protect the maximum melt adhesive efficiency;
* Adopts Delta PLC temperature control to ensure stable control temperature. Within ±1°C of set temperature, the host temperature control system adopts full touch screen.
Module temperature controller combined control, with PID self-tuning adjustment function, the system operation interface is full Chinese operation interface, graphic intelligent dialogue window,
Smart alarm, easy to operate.
* The host control unit is equipped with an automatic tracking system, high-precision signal acquisition, a special anti-electromagnetic interference meter, internal over-current and over-voltage protection,
Ensure the stable and reliable operation of the system.
* Using liquid crystal display, good man-machine interface, data observation and operation is simple, intuitive, convenient, up to 8-way temperature control settings;
* Precision metering pumps ensure the stability and continuity of glue output;
* The connection between the gear pump and the motor adopts universal joint connection. Its role is to make the included angles at both ends of the transmission shaft equal, and ensure that the output shaft and the shaft enter the shaft.
The instantaneous angular velocity is always equal, which ensures the stable and uniform melter at high speed.
* The host adopts high-precision return valve (return valve sensitivity ± 1bar). It is equipped with a locking function to avoid damage to equipment due to operational errors or
The safety of the personnel, etc., the filter design of the whole machine adopts multi-layer filtration, which can prevent the PUR glue from becoming stagnant due to the expired and causing blockage.
* Independent design of mechanical and electrical control systems, with a reasonable structure and easy operation and maintenance.
WA series PUR hot melt adhesive machine adopts touch screen-human interface full operation, suitable for application of high-precision hot melt adhesive coating, motor-driven precision gear pump and automatic glue tracking system, and supporting precision gear pump to meet users Different production needs.
* The fuselage adopts the frame structure design, the hoarding board combination, makes its overall coordination beautiful, the daily maintenance is quick and convenient;
* Double osmosis Teflon coating inside the melting tank, large fin-like heating part of the immersed fin, improving the efficiency of the melted glue to save energy consumption, the inner wall "Teflon" coated
Layer, effectively reduce the carbonation phenomenon, to protect the maximum melt adhesive efficiency;
* Adopts Delta PLC temperature control to ensure stable control temperature. Within ±1°C of set temperature, the host temperature control system adopts full touch screen.
Module temperature controller combined control, with PID self-tuning adjustment function, the system operation interface is full Chinese operation interface, graphic intelligent dialogue window,
Smart alarm, easy to operate.
* The host control unit is equipped with an automatic tracking system, high-precision signal acquisition, a special anti-electromagnetic interference meter, internal over-current and over-voltage protection,
Ensure the stable and reliable operation of the system.
* Using liquid crystal display, good man-machine interface, data observation and operation is simple, intuitive, convenient, up to 8-way temperature control settings;
* Precision metering pumps ensure the stability and continuity of glue output;
* The connection between the gear pump and the motor adopts universal joint connection. Its role is to make the included angles at both ends of the transmission shaft equal, and ensure that the output shaft and the shaft enter the shaft.
The instantaneous angular velocity is always equal, which ensures the stable and uniform melter at high speed.
* The host adopts high-precision return valve (return valve sensitivity ± 1bar). It is equipped with a locking function to avoid damage to equipment due to operational errors or
The safety of the personnel, etc., the filter design of the whole machine adopts multi-layer filtration, which can prevent the PUR glue from becoming stagnant due to the expired and causing blockage.
* Independent design of mechanical and electrical control systems, with a reasonable structure and easy operation and maintenance.
