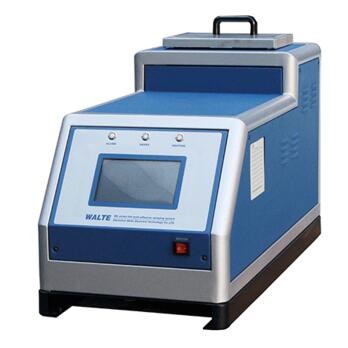

Hot melt adhesive spraying system

Application of precision hot melt adhesive spraying. The motor drive precision gear pump and the automatic tracking system of glue output, and matching different specifications of precision gear pump, to meet the needs of different production needs of users.
* the overall equipment, the use of motor matching precision gear pumps, gear pumps are single, double, a variety of models available.
* the overall equipment, real-time detection of the current status of "heating, ready, alarm", to ensure stable operation of equipment
* integral equipment with built-in thermal insulation function.
* the whole equipment, the operating languages are available in Chinese and English, two languages.
* the whole equipment is controlled by independent return valve and bifurcation seat to ensure the smoothness and adjustment of glue pressure.
* overall equipment, built in over temperature protection, low temperature protection, motor delay start protection, output open circuit or other fault protection, etc., to ensure the safe operation of equipment;
* the overall temperature control equipment, using imported thermostat, temperature control accuracy of plus or minus 1 DEG C (2 degrees F), with PT100 and NI120 type sensor.
* the fuselage adopts the arc frame structure design, the buckle type hanging board combination, causes its overall coordination to be beautiful, but also guarantees the daily maintenance to be quick, is convenient.
* melting cylinder adopts grid asymptotic design, the inner wall of "TEFLON" coat, durable, delaying the aging of hot melt adhesive, adhesive protection efficiency;
* overall control, with touch screen - Man-machine interface, melting cylinder, rubber hose and gun body, and other sub display and adjustment control;
